Product Details
- Place of Origin: zhucheng
- Brand Name: wanxing
- Model Number: 013

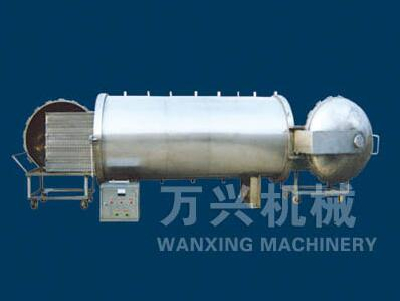

Before sterilization,under the condition that the air within the kettle is dry,the interlayer can be heated in advance to make the temperature reach above100℃,which can teduce time of sterilization and ensure dryness of materials.Double Doors Interlayer Sterilizing Kettle can be applied to line production。
Technical Parameter：
- Place of Origin: zhucheng
- Brand Name: wanxing
- Model Number: 013
| MOdel | 900# | 1000# | 1200# | |||||
| 1 | 1 | 1 | 2 | 3 | 4 | 5 | 6 | |
| Inside Diameter（mm） | 900 | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Kettle Length(mm) | 1800 | 2400 | 2200 | 2400 | 2700 | 3000 | 3300 | 3600 |
| Total Length（mm） | 2500 | 3400 | 3200 | 3400 | 3700 | 4000 | 4200 | 4600 |
| Total Width（mm） | 1250 | 1500 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Total Height（mm） | 1300 | 1600 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| Designed Temperature | 145℃ | |||||||
| Test Pressure | 0.44Mpa | |||||||
| Designed Pressure | 0.35MPa | |||||||
